 MN9 - Flasher, Horn and Controls

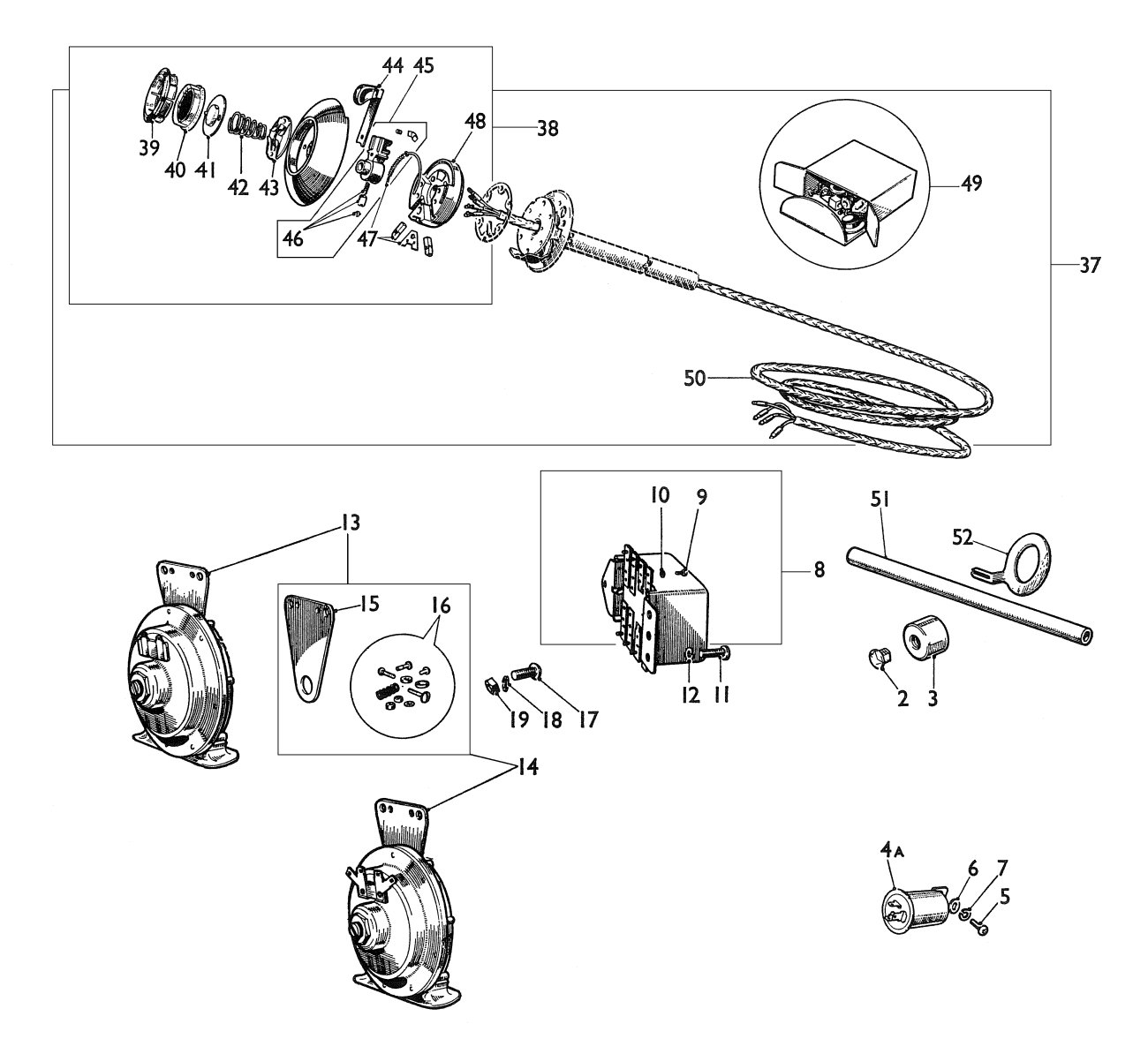

(Click on the image below to open a larger version in a new window)

DescriptionPart No.Illus. No.Qty.Change PointRemarks

FLASHER, HORN, AND CONTROLS
Cover and window - flasher warning light27H 282122(C) H-BJ8-25315 on
Shade - flasher warning lightAJG 504732(C) H-BJ8-25315 on
Unit - flasher13H 1104A1(C) H-BJ8-25315 on
Screw - unitPMZ 030851(C) H-BJ8-25315 on
Washer - plainPWZ 10361(C) H-BJ8-25315 on
Washer - springLWZ 20371(C) H-BJ8-25315 on
Relay - flasher3H 145481to (B) H-BJ8-76137
   Screw - terminal17H 559498to (B) H-BJ8-76137
   Washer - shakeproof27H 1473108to (B) H-BJ8-76137
Screw - relayPMZ 0308113to (B) H-BJ8-76137
Washer - spring - screwLWZ 203123to (B) H-BJ8-76137
Horn - high note13H 2109131 W.S.E. use BHA 4515
Horn - low noteBHA 4514141
   Bracket57H 5309152
   Sundry parts57H 5310162 sets
ScrewAJD 6257 Z 2
Washer - shakeproofLWZ 406 2
ScrewPMZ 0408174
Washer - springLWZ 204184
Horn and direction indicator control1B 6303371
   Cover assembly - top47H 5010381
      Ring - horn-push retaining7H 5468391
      Horn-push47H 5011401
      Plate - horn-push contactNSP411 Was AJA 5006
      Spring - horn-pushNSP421 Was 7H 5139
      Contact - horn-pushNSP431 Was 7H 5138
      Lever - flasher-operating27H 5556441
      Rotor and plunger - switch7H 5469451
         Plunger7H 5142461
      Pawl and springs7H 5143471 set
      Base - switch27H 5557481
   Sundry parts7H 5512491 set
   Cable17H 5259501
Stator tube1B 6226511
Bracket - indicator trip2H 2635521
