MN10 - Windscreen Wipers

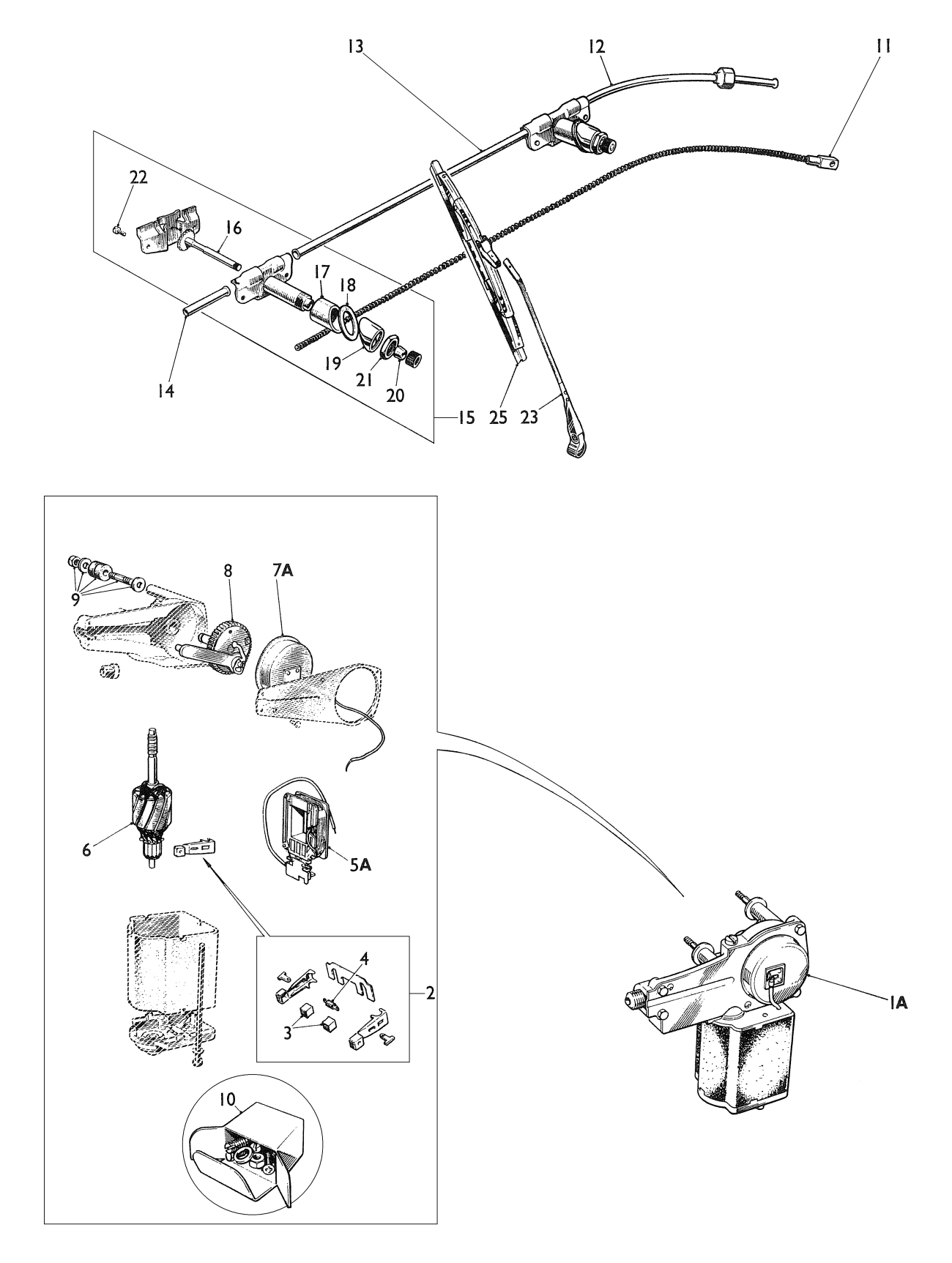

(Click on the image below to open a larger version in a new window)
| DESCRIPTION | Part No. | Illus. No. | Qty. | Change Point | Remarks |
|---|---|---|---|---|---|
| WINDSCREEN WIPERS | |||||
| Motor - windscreen wiper | 57H 5554 | 1A | 1 | (B) H-BJ7-60792 on | Correction; was 37H 5554 |
| Brush gear | 17H 5396 | 2 | 1 | (B) H-BJ7-60792 on | |
| Brush | 7H 5130 | 3 | 1 set | (B) H-BJ7-60792 on | |
| Spring - brush | 27H 5309 | 4 | 1 set | (B) H-BJ7-60792 on | |
| Coil - field | 57H 5294 | 5A | 1 | (B) H-BJ7-60792 on | |
| Armature | 27H 5374 | 6 | 1 | (B) H-BJ7-60792 on | |
| Switch - parking | 57H 5559 | 7A | 1 | (B) H-BJ7-60792 on | |
| Shaft and gear | 57H 5586 | 8 | 1 | (B) H-BJ7-60792 on | |
| Stud - fixing | 17H 5431 | 9 | 3 sets | (B) H-BJ7-60792 on | |
| Sundry parts | 17H 5441 | 10 | 1 set | (B) H-BJ7-60792 on | |
| Crosshead and rack | 37H 5169 | 11 | 1 | (B) H-BJ7-60792 on | |
| Casings - outer | |||||
| Motor to wheelbox | BHA 4414 | 12 | 1 | (B) H-BJ7-60792 on | |
| Wheelbox to wheelbox | 14B 5598 | 13 | 1 | ||
| Wheelbox extension | 14G 3722 | 14 | 1 | ||
| Wheelbox | BHA 4151 | 15 | 2 | ||
| Spindle and gear | AJH 5079 | 16 | 2 | ||
| Bush - rear | AHH 5414 | 17 | 2 | ||
| Washer - (rubber) | ADC 560 | 18 | 2 | ||
| Bush - front | ADB 826 | 19 | 2 | ||
| Tube - spindle (rubber) | ANK 3458 | 20 | 2 | ||
| Nut | ANK 3459 | 21 | 2 | ||
| Screw - cover | AJD 3202 Z | 22 | 4 | ||
| Arm - wiper - RHD | BHA 4351 | 23 | 1 | ||
| Blade - wiper | 13H 469 | 25 | 2 |
